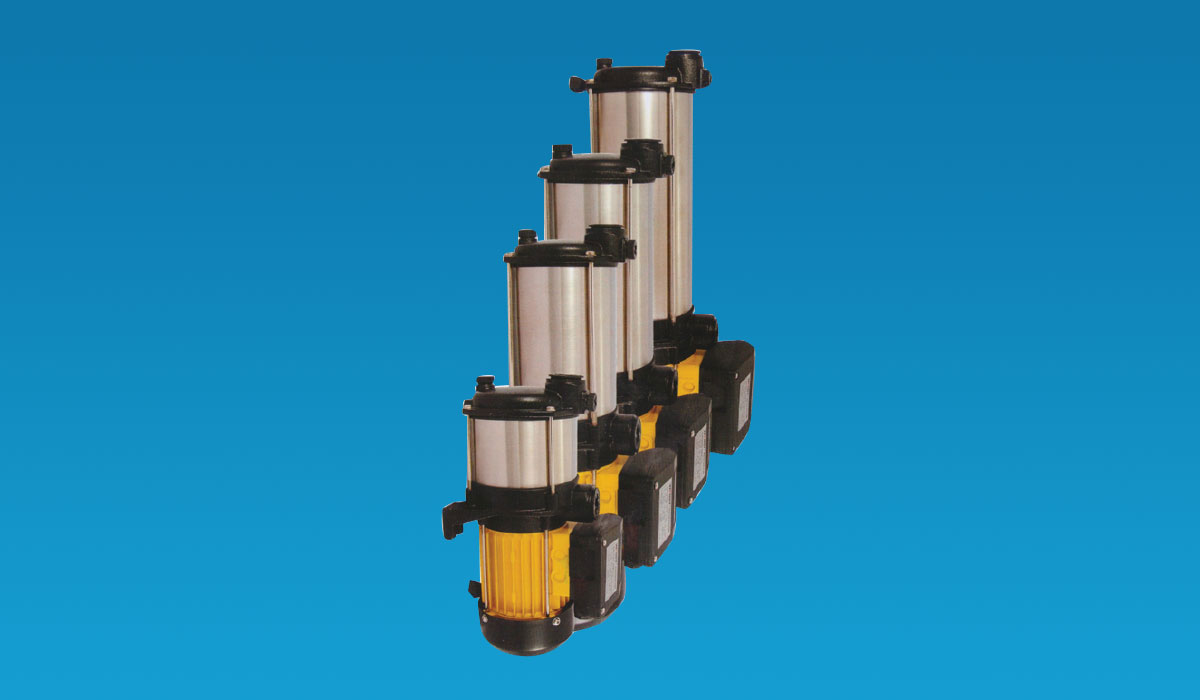

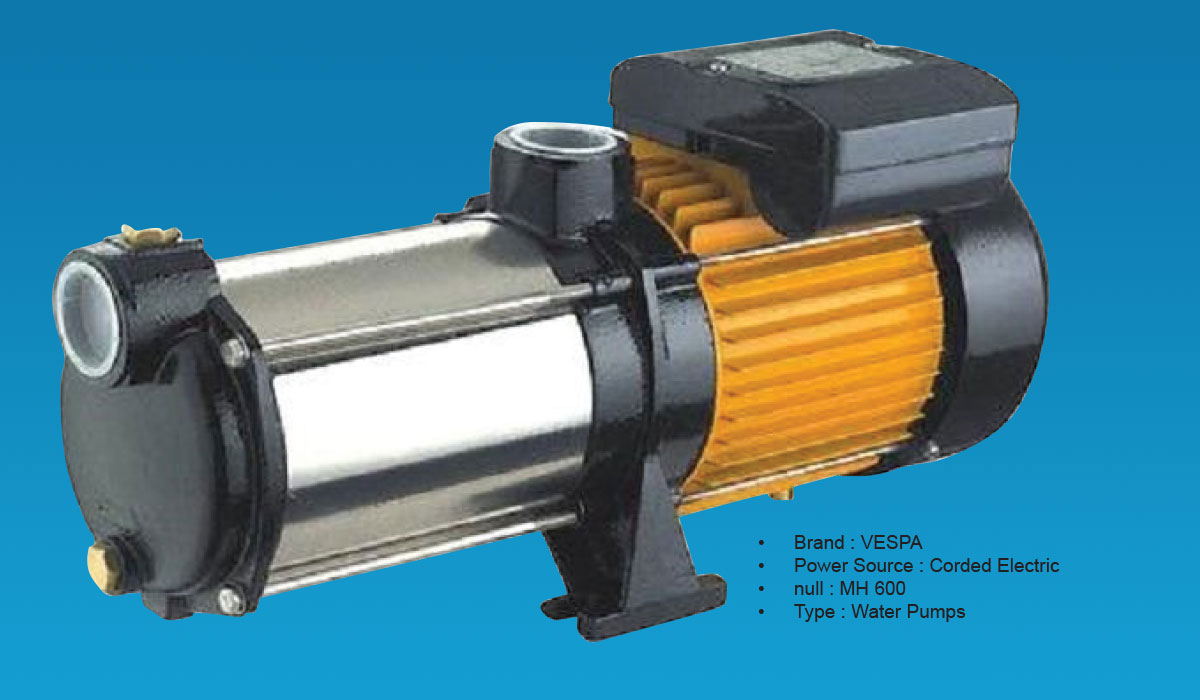

MULTISTAGE HORIZONTAL CENTRIFUGAL PUMP

PUMP :

Maximum capacity: 90l/min(5.4m3/h).Head up to 86m.Temperature of pumped liquid: 0-40°C. Maximum operating pressure: 9.0 bar.

MOTOR :

Asynchronous, two poles. Protection class: IPX5 . Class F insulation. Continuous operation. Single phase version 220-240V 50Hz with automatic reset overload protection. Three phase version: 220-240V/380-415V 50Hz, the overload protection must be provided and installed by the user in the control panel. Maximum ambient temperature 40°C

MATERIALS :

Suction/discharge mounting in Casting Iron (Casting brass are availability). Pump housing in SUS 304 Stainless steel. Diffuser in PPO(Noryl®) Impellers in PPO(Noryl® )(SUS 304 Stainless steel are availability). Motor shaft in SUS 416 stainless steel (Carbon steel and SUS 316 Stainless steel are availability). Mechanical seal with Ceramic/graphite, NBR elastomers, other parts are made of SUS 304 stainless steel. O-ring made of NBR (EPDM are availability).

OPTIONAL FEATURES

Different voltages and frequencies. Different materials for the mechanical seal.
